Disto X4

DISTO X4

$455.00 – $1,290.00

Clear
SKU: 855107 Category: Tags: ,

Description

The DISTO X4 is an outdoor laser distance meter.

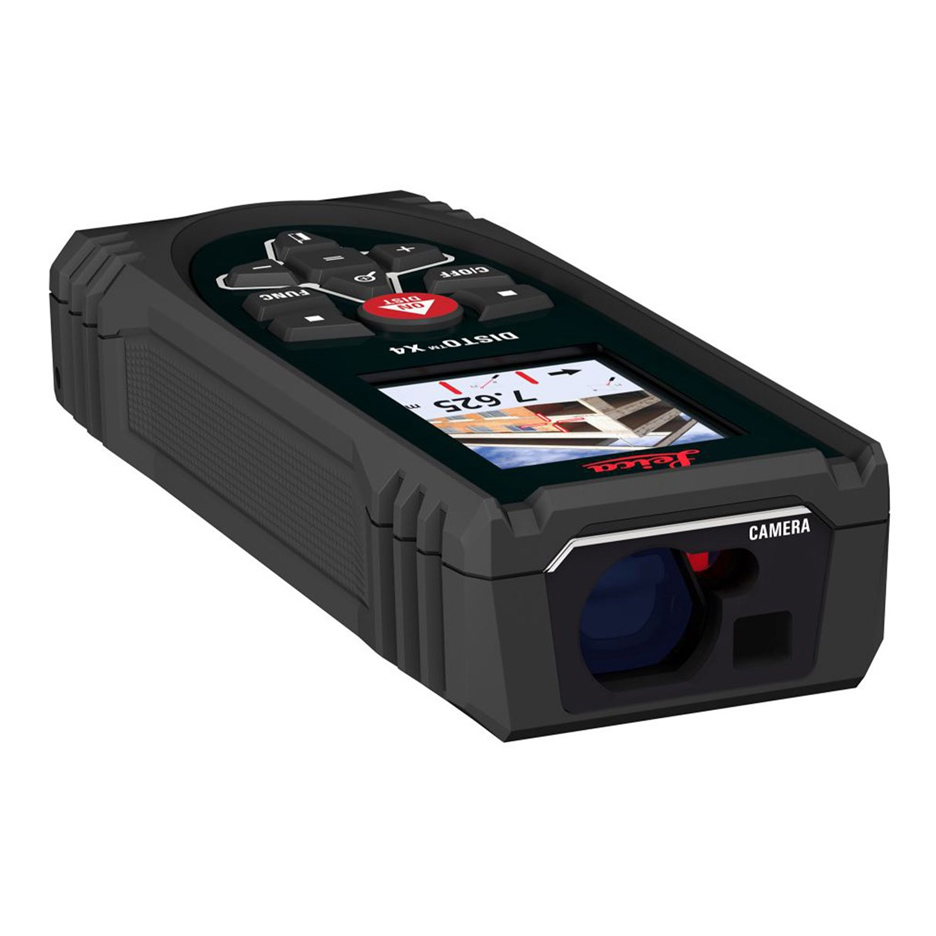

The Leica DISTO X4 Laser Distance Meter is an easy-to-use device designed for outdoor measuring jobs by combining distance measurement innovation with robustness. It features a Pointfinder camera that allows easy and precise long-distance measurements objects in bright sunlight. It is capable of up to four times zoom and has a 2″ display to show targets and measured values. The device’s casing and keypad are dust and water resistance with the IP65 protection standards.

This laser distance meter has a distance measuring accuracy of ± 1.0 millimeter at a range of 0.05 to 150 meters. Its measuring units are in meter, feet, and inches. The device utilizes the X-Range Power technology and a tilt sensor with an accuracy of ± 0.2 degrees. Its general data interface is the Bluetooth technology and has a wide compatibility that supports iOS, Android and Windows.

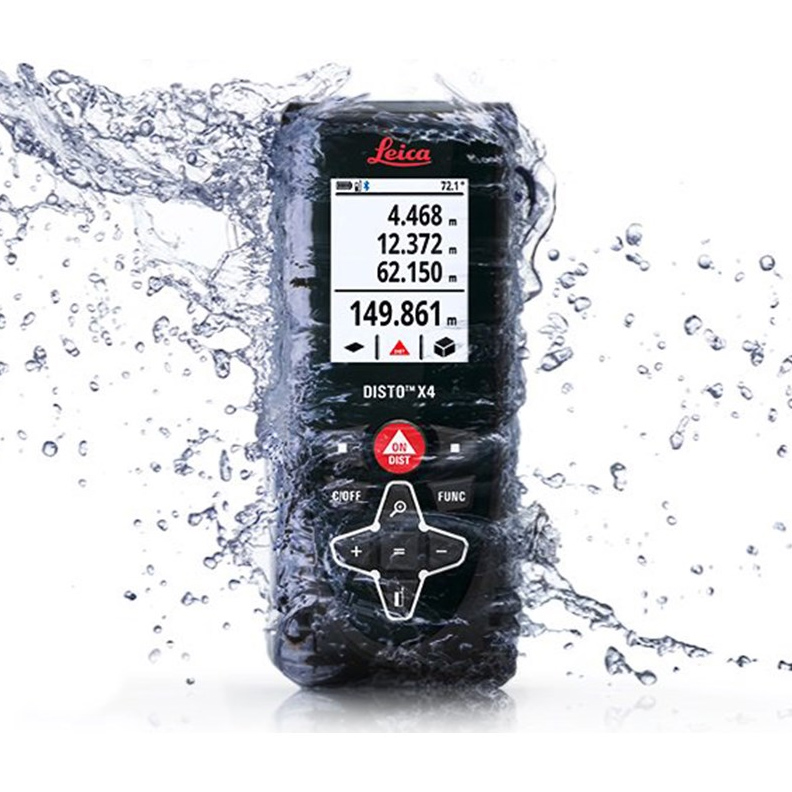

Truly Robust

This DISTO X4 is drop-tested up to 2 m in height, water jet and dust protected. Its IP65 rating means you can clean it under running water. Its housing is made of solid rubber and its special bracing made from fiberglass-reinforced plastic strengthens its interior. Easy to use buttons and functions allow fast and intuitive work and usage of the device. It works perfectly with Leica DST 360 for a P2P technology to transform it into a sturdy measurement station. It comes with a holster, hand loop, and batteries.

Horizontal Measurements

Distance and tilt measurements allow you to determine horizontal distances with absolute precision. Use your laser measurement data to automatically generate realistic and scaled floor plans.

Auto-Rotate Display

The display automatically rotates in line with the orientation of the device; allowing you to easily read the screen from any angle.

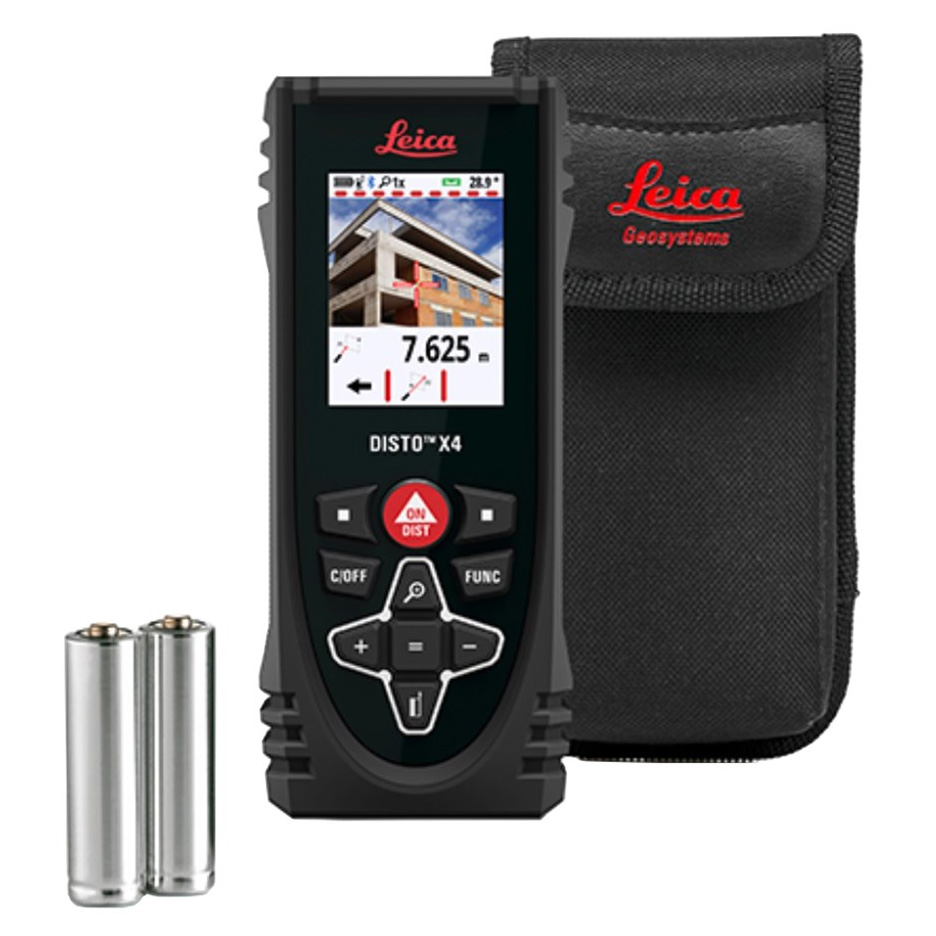

DISTO X4 includes:

• DISTO X4

• Hand Loop

• Carrying Pouch

• 2x AA batteries

• Warranty Card

• Safety Manual

• Calibration Certificate Silver

• Quick Start Guide

Additional information

Weight 8 lbs
Dimensions 12 × 8 × 8 in
Option

Device Only, P2P Package

Specifications

  • Typical Distance Measuring Accuracy (ISO 16331-1 certified): ± 1.0 mm
  • Range (ISO 16331-1 certified): 0.05 up to 150m
  • Measuring Units: meter, feet, inch
  • X-Range Power Technology: Yes
  • Tilt Sensor: Yes
  • Tilt Sensor Accuracy to the Housing: ± 0.2°
  • Smart Base Measuring Range (Horizontal): 360° for use with Leica DST 360
  • Smart Base Measuring Range (Vertical): -64° to > 90° for use with Leica DST 360
  • Typical Tolerance of the P2P Function for use with Leica DST 360: ± 2mm at 2m, 5mm at 5m, 10mm at 10m
  • Leveling Range: 5° for use with Leica DST 360
  • Pointfinder with Zoom: 4x
  • Memory of Last Measurement: 20
  • DISTO Transfer for Windows: Yes
  • DISTO Plan app for iOS and Android: Yes, includes in app purchases
  • Smart Room Function Support: Yes
  • General Data Interface: Bluetooth Smart
  • Data Interface for 3D Point Data: Bluetooth Smart
  • Measurements Per Set of Batteries: up to 4,000 (reduced when used with Bluetooth)
  • Service Life of Batteries: up to 8h (reduced when used with Bluetooth)
  • Multifunctional Endpiece with Automatic Reference Detection: Yes
  • Batteries: 2x AA Alkaline
  • Protection Class: IP65
  • 2 m Drop Tested: Yes

Download Data Sheet

Download Data Sheet
