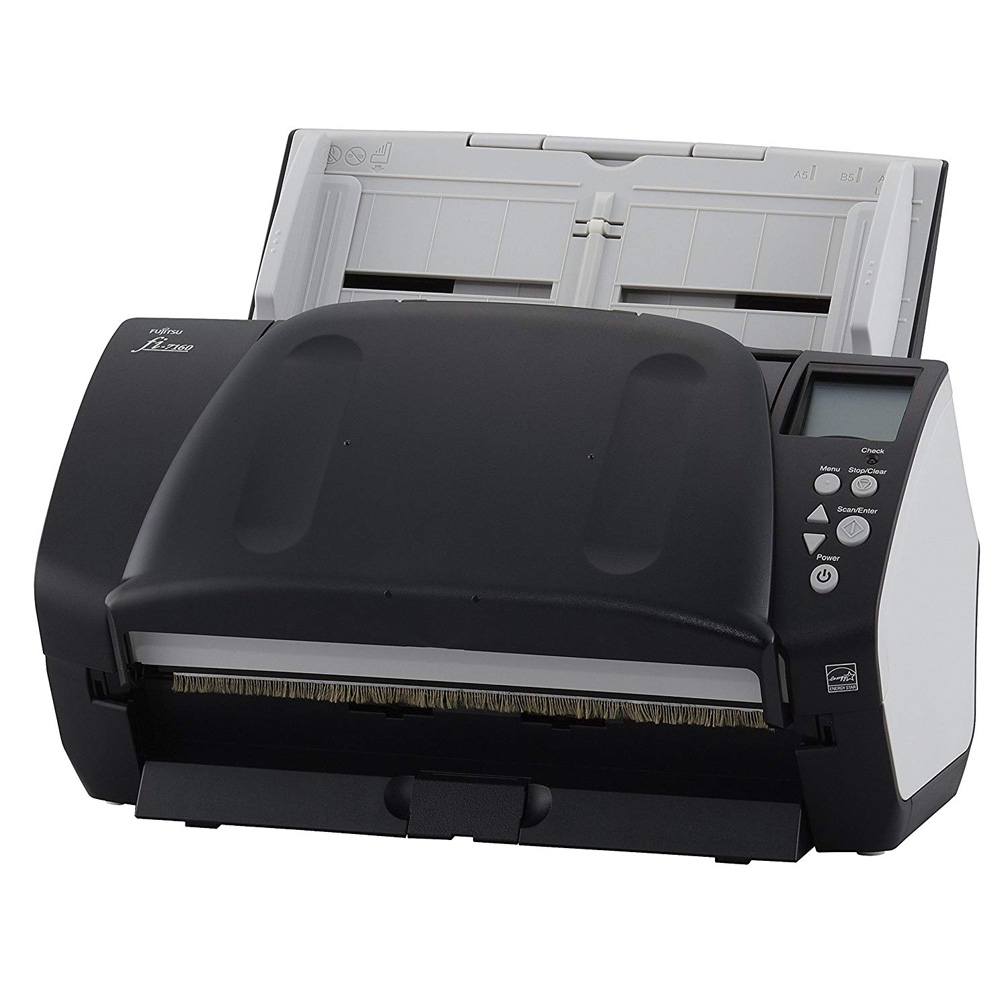

fi-7160 Scanner

$1,195.00

SKU: PA03670-B055 Category: Tag:

Description

The fi-7160 enable desktop simplicity engineered for performance and reliability.

With duplex scanning speeds of 120 images per minute at 300 dpi in color, grayscale, and monochrome, the fi-7160 protects your documents with acoustic sensors, ensures your data is captured with smart ultrasonic technology, and reduces rescans by cleaning up documents automatically in a single pass. Reliability is enhanced even further with new skew prevention technology for exceptional paper handling.

Both hardware and software are equally important in the Fujitsu fi-7160 scanner. The newly developed PaperStream IP driver and image processing middle-ware combined with the PaperStream Capture software offer simplified and automated batch scanning routines that intelligently convert batches of documents into predetermined work routines.

This new fi series model offers USB 3.0 support and is designed to make end-to-end scanning processes faster. The fi-7160 model processes up to 60 sheets/120 pages per minute (A4, color, duplex, 300 dpi). Additional functions also help deliver top results. For example, it is easy to scan a mixed batch containing sheets of different sizes and thicknesses. The scanner mechanically straightens any documents that may have been fed askew and PaperStream IP also automatically corrects any remaining irregularities. An ultrasonic sensor recognizes whether two or more sheets have fed in and issues an error message. Even sticky notes do not delay the workflow as the system recognizes them automatically. Further, user support is provided through the scanners’ LCD panel which provides straightforward operation flows and allows users to select profiles directly on the device, check the quantity of scanned documents or review any status messages.

โ€ข Duplex Document Scanner

โ€ข Fast, 60 ppm scanning in color, grayscale and monochrome

โ€ข 80-sheets Automatic Document Feeder (ADF)

โ€ข Advanced paper handling technology for the ultimate in feeding reliability

โ€ข LED light-source

โ€ข Scanner Central Admin Suite

โ€ข Continuous hard and embossed card scanning up to 1.4 mm thick

โ€ข Ultrasonic multi-feed Detection sensor for security against lost images

โ€ข iSOP (Intelligent Sonic Paper Protection)

โ€ข Scan sticky notes, taped receipts, and labels while securing against multi-feeds

โ€ข USB 3.0 for forward compatibility

โ€ข Long document support up to 5.6 m (18.3 feet) in PaperStream IP

โ€ข Comes with PaperStream IP and PaperStream Capture

Centralized Efficiencyย

Whether the infrastructure is fixed or expanding, managing technology efficiently inside the organization is key to reducing total cost of ownership and the Fujitsu scanner provides system administrators with advanced software tools to centrally manage the scanner more productively and cost effectively.

โ€ข Agent, console and server remote scanner management

โ€ข Real-time Fujitsu scanner inventory

โ€ข Status and alert monitoring

โ€ข Centralized driver update deployment

โ€ข Consumable management

PaperStream IP

The PaperStream IP driver takes the work out of image cleanup when scanning invoices, ID cards, receipts, forms, or any other day to day paperwork. PaperStream IP automatically improves the image quality, removes unwanted backgrounds, and optimizes your scanned images for optical character recognition. It is fast and easy to use. The latest innovation, Assisted Scan, allows users to replace poor images by visually selecting the image they lack rather than learning driver settings. If driver settings need to be adjusted for rare and difficult documents, our preview function allows scan operators to see their adjustments in real-time without time consuming re-scans. PaperStream IP works with both ISIS and TWAIN applications.

PaperStream Capture

PaperStream Capture makes advanced capture with Fujitsu scanners easier than before. PaperStream Capture has a streamlined User Interface to reduce training time and increase productivity. Not only are users provided with the most common profiles used by customers, black and white, color, and auto-color, new profiles are easily created or modified through a wizard. The release screen is organized so batches can easily be suspended or continued. PaperStream Capture is also integrated with PaperStream IPโ€™s assisted scanning for visual cleanup of documents. The reading of barcodes and patch codes make document separation easy, improving document organization.

Additional information

Weight 20 lbs
Dimensions 11.8 × 22.7 × 9.2 in

Specifications

โ€ข Image Sensor Type: Color Charged-Coupled Device (CCD)

โ€ข Light Source: White LED Array

โ€ข Optical Resolution: 600 dpi

โ€ข Output Resolution: 50 – 600 dpi (adjustable by 1 dpi increments

โ€ข Output Format: Color, Grayscale, Monochrome

โ€ข Imaging Processing Functions: Multi-image, Blank Page Skip, i-DTC, Advanced-DTC, Simplified-DTC, sRGB, Auto Color, Deskew, Cropping, Hole Punch Removal, Tab Cropping, Upper Lower Separation, Error Diffusion, Dither, Moire Removal, Image Emphasis, Color Cleanup, Dropout Color, Edge Repair, Vertical Streaks Reduction

โ€ข ADF Scanning Speed (A4 Portrait, Color, Grayscale, Monochrome): Simplex – 60 ppm, Duplex – 120 ipm (300 dpi)

โ€ข ADF Capacity: 80 sheets (A4, 20 lb)

โ€ข vMinimum ADF Document Size: 2″ x 2.13″

โ€ข Maximum ADF Document Size: 8.5″ x 14″

โ€ข Long Document: 8.5″ x 220″

โ€ข ADF Feeding Paper Weight Thickness: 7.2ย  – 110 lb

โ€ข Card Thickness: up to 1.4 mm

โ€ข Power Requirements: 100 – 240 VAC ยฑ 10%
