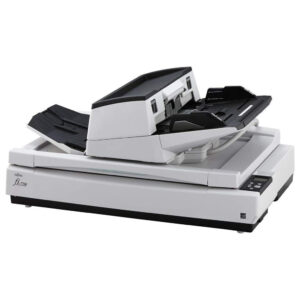

fi-7700 Scanner

$7,995.00

SKU: PA03740-B005 Category: Tag:

Description

The fi-7700 is a heavy-duty & flexible production scanner for professional use.

The fi-7700 allows you to scan A4 landscape documents at 100 ppm/200 ipm (200/300 dpi). The scanner is suitable for continuous scanning because it allows you to load up to 300 sheets at a time which improves efficiency when scanning a large volume of documents. In addition, various types of documents, such as thin paper, plastic cards, books, magazines, envelopes, and long page documents can be scanned on this scanner.

โ€ข Duplex Document Scanner

โ€ข Fast scanning – up to 100 ppm in color or monochrome, landscape

โ€ข Built-in Flatbed

โ€ข Paper chute capacity up to 300 sheets

โ€ข Capable of handling various thicknesses and sizes

โ€ข Paper Protect safeguards against paper jams by detecting anomalies in sound (iSOP): Intelligent Sonic Paper Protection) and document length

โ€ข Flexible design and LCD panel for easy operation

โ€ข Independent Side Guides for easily aligning mixed size documents

Stable and smooth scanning of large volumes and various types of documentsย

Scan various types of business documents with a single scanner. The straight paper path design provides reliable scanning regardless of the condition and type of paper.ย The Paper Picking Control function observes each documentโ€™s movement, and controls the pressure put on the papers that are set on the chute, making smooth continuous feeding possible.ย By simply changing the feed mode to Manual/Single mode, you can easily scan thick documents such as drawings folded in half, multi-layered receipts, and envelopes with the same straight paper path operation.ย

Protect important information by preventing missing edges and document damage. Skew Reducer helps improve the feeding performance significantly and prevents a scanned image from missing an edge.ย Paper Protection function minimizes the risk of document damage and protects your important documents by detecting anomalies in sound and document length.ย

Design that meets the user’s needs

The fi-7700 helps improve the efficiency of operations by providing a variety of functions that make scanning easier for the user. The fi-7700 is equipped with an ADF that can slide to the right or left or rotate 180 degrees. A user can load documents easily for scanning by adjusting the ADF to suit the user’s office or work space environment.ย The operational panel is equipped with an LCD to easily check the status of the scanner.ย

Reduce the workload before and after scanning from setting to collecting documents. When setting documents, you can easily align the edges of the documents with independent Side Guides even if the size of each document varies.ย Stacker Side Guides reduce the time and effort required for aligning and putting away documents after a scan by preventing scanned documents from being unevenly stacked or aligned.ย The Cover-open Cropping function automatically recognizes the documentโ€™s size, even when the cover is opened, and eliminates the hassle of opening and closing the cover when consecutively scanning documents.

โ€ข Flatbed with Open Cover Scanning technology to get done faster! Scan documents on the flatbed without closing the cover, and the document is automatically cropped

โ€ข Automatic document feeder features a straight paper path, reducing the stress on your stack of documents during scanning

โ€ข Forgot to remove a staple? Intelligent Sonic Paper Protection “listens” to paper flowing through the machine and stops if a misfeed occurs, reducing damage to your documents

โ€ข Intelligent Multi-feed Function allows easy manual bypass for sticky notes, taped receipts, and labels that can slow down batch scanning

โ€ข Ultrasonic Double Feed Detection identifies sheets stuck together so you don’t miss an image

โ€ข Skew Reduction significantly improves feeding performance and ensures that your whole document is accurately scanned from edge to edge

Advanced software for work efficiencyย

Connect your business workflow with PaperStream IP and PaperStream Capture.ย The PaperStream IPย scanner driver, which supports TWAIN/ISIS, avoids the inconvenience of fine settings adjustment for OCR processes. It automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled or soiled documents, or documents with a background pattern. With an intuitive interface, PaperStream Captureย allows you to feed information into your organization’s workflow through various capture features during batch scanning effectively and efficiently.

Barcode recognition, automatic sorting, and indexing.ย You can focus on routine tasks (batch scanning) and configure the scanner to create folders that are divided with barcodes or patch codes as well as automatically sort scanned images to save or index them. The automatic selection of a scanning mode according to patch codes allows you to load a mixed batch of documents with different types of documents at the same time. The usability for an administrator and a user is taken into consideration for image processing, which has made simple operations possible and has improved productivity, so that less work is required for a user to sort scanned images.

Additional information

Weight 77.2 lbs
Dimensions 27.8 × 19.7 × 13.6 in

Specifications

โ€ข Image Sensor Type: Color Charged-Coupled Device (CCD); Front x 1, Back x 1, Flatbed x 1

โ€ข Light Source: White LED Array; front x 2, back x 2, Flatbed x 2

โ€ข Multi-feed Detection: Ultrasonic multi-feed detection sensor, Paper detection sensor

โ€ข Optical Resolution: 600 dpi

โ€ข Output Format: Color, Grayscale, Monochrome

โ€ข Imaging Processing Functions: Multi-image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, De-screen, Emphasis, Halftone, Dropout color, sRGB output, Hole punch removal, Index tab cropping, Split image, De-skew, Edge correction, Vertical streak reduction, Cropping, Dither, Static threshold, Divide long page

โ€ข Scanning Speed (A4 Landscape, Color, Grayscale, Monochrome):

โ€ข ADF: Simplex – 100 ppm, Duplex – 200 ipm (300 dpi)

โ€ข Flatbed: Simplex – 0.6 seconds (300 dpi)

โ€ข Scanning Speed (A4 Portrait, Color, Grayscale, Monochrome):

โ€ข ADF: Simplex – 80 ppm, Duplex – 160 ipm (300 dpi)

โ€ข Flatbed: 0.9 seconds (300 dpi)

โ€ข Paper Chute Capacity: 300 sheets (A4, 20 lb)

โ€ข Minimum Document Size: 2″ x 2.72″

โ€ข Maximum Document Size: 12″ x 17″

โ€ข Long Page Scanning: 12″ x 220″

โ€ข Flatbed Maximum: 12″ x 18″

โ€ข Paper Weight Thickness: 5.3ย  – 110 lb

โ€ข Plastic Card Thickness: up to 1.4 mm

โ€ข Power Requirements: 100 – 240 VAC ยฑ 10%

Download Data Sheet

Download Data Sheet
