LINO L2 Starter Kit

$205.00

SKU: 848435 Category: Tags: ,

Description

Achieve exact and quick projection of horizontal and vertical lines with the LINO L2 Starter Kit.

The high-precision optics of the Leica LINO L2 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees. The LINO L2 Starter Kit is powered by alkaline batteries.

Self-Leveling

The LINO L2 automatically adjusts its positioning if it is slightly out of level up to ยฑ 4ยฐ. Outside this limit a visual alert is activated to prevent errors.

Smartย Adapters

Smart adaptersย allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.

Rugged Design

The L2 is dust and spray water protected to IP54 standards. This makes it a rugged instrument suitable for all your jobs.

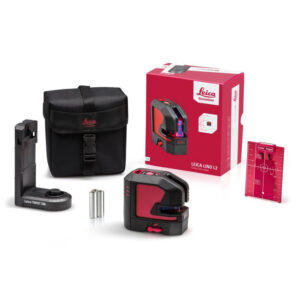

What’s Included:

โ€ข Leica LINO L2

โ€ข Twist 250 Adapter

โ€ข Carrier Case

โ€ข Target Plate

Additional information

Weight 15 lbs
Dimensions 24 × 18 × 18 in

Specifications

  • Range: up to 25 m depending on lighting conditions
  • Range with Laser Receiver: up to 80 m depending on lighting conditions
  • Leveling Accuracy: ยฑ 0.2 mm / m
  • Self-Leveling Range: ยฑ 4 ยฐ
  • Self-Leveling Time: < 3 s
  • Number of Laser Lines: 2
  • Beam Direction: vertical, horizontal
  • Laser Line Width at 5m: < 2 mm
  • Laser Type: 635 nm / class 2 (red)
  • Battery Type: Li-Ion rechargeable (or AA 3 x 1.5 V)
  • Operating Time: up to 44 h (Li-Ion) depending on laser mode
  • Temperature Range Storage: -25 to 70ยฐC (-13 to 158ยฐF)
  • Temperature Range Operation: -10 to 50ยฐC (14 to 122ยฐF)
  • Protection Class: IP54
  • Tripod Thread LINO: 1/4″
  • Tripod Thread Adapter: 1/4″ + 5/8″

Download Data Sheet

Download Data Sheet
