LINO L2G

$435.00

SKU: 864420 Category: Tags: ,

Description

The LINO L2G is a Green Cross Line Laser

The Leica LINO L2Gย  brings laser line visibility and clarity to the highest level. Green reference lines are easily seen in difficult lighting conditions and over long distances.

The L2Gโ€™s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 28 hours on one charge. Alternatively, you can useย Alkaline batteriesย or simply itsย charger.

Magnetic Smart Adapter

Magnetic smart adapters allow you to quickly position your Lino L2G with absolute precision. You can set up the rotatable adapter over edges and profiles, or attach it to iron pipes, tracks and bars with the addition of theย UAL 130 adapter.

Always Level

The LINO L2G is a self-leveling laser. It automatically corrects its positioning when out of level up to ยฑ 4ยฐ. The laser beams flash if the tilt is outside this range to prevent errors.

Construction Site Proof

The L2G is dust and spray water protected to IP54 standards and comes in a hard case allowing you to store all accessories safely.

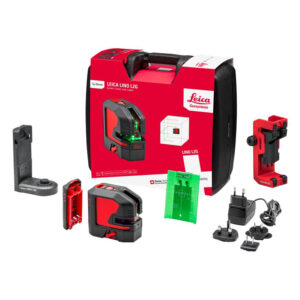

What’s Included:

โ€ข Leica LINO L2G

โ€ข Twist 250

โ€ข UAL 130 Wall Mount Clamp

โ€ข Hard Case

โ€ข Li-Ion Battery & Charger

โ€ข Alkaline Ray

โ€ข Target



Additional information

Weight 25 lbs
Dimensions 24 × 18 × 18 in

Specifications

  • Range: up to 35 m depending on lighting conditions
  • Range with Laser Receiver: up to 80 m depending on lighting conditions
  • Leveling Accuracy: ยฑ 0.2 mm / m
  • Self-Leveling Range: ยฑ 4 ยฐ
  • Self-Levelling Time: < 3 s
  • Number of Laser Dots: 4
  • Number of Laser Lines: 2
  • Beam Direction: vertical, horizontal, up, down, right, left
  • Dot Accuracy: ยฑ 0.2 mm / m
  • Laser Line Width at 5m: < 2 mm
  • Laser Type: 525 nm / class 2 (green)
  • Battery Type: Li-Ion rechargeable (or AA 3 x 1.5 V)
  • Operating Time: up to 28 h (Li-Ion) depending on laser mode
  • Temperature Range Storage: -25 to 70ยฐC (-13 to 158ยฐF)
  • Temperature Range Operation: -10 to 50ยฐC (14 to 122ยฐF)
  • Protection Class: IP54
  • Dimensions: 110 x 60 x 100 mm
  • Weight with Batteries: 530 g
  • Tripod Thread LINO: 1/4″
  • Tripod Thread Adapter: 1/4″ + 5/8″
