LINO L2P5G

$595.00

SKU: 864435 Category: Tags: ,

Description

The LINO L2P5G is a Green Cross Line and Point Laser

The Leica Lino L2P5G uses the best green laser technology and combines it with the functionalities of a cross line laser and a point laser. Its green laser beams and points are up to four times more visible to the human eye compared to red ones, which makes it the ideal tool for bright environments and large rooms.

Li-Ion batteriesย allow this all-round laser tool to run up to 28 hours on just one charge. Alternatively, it can be powered by Alkaline batteries or by itsย charger.

Maximum Accuracy

The Leica LINO L2P5G uses the latest green laser technology which projects clearer and crisper laser lines at exact right angles to one another. This allows for the highest accuracy of detailed interior tasks.

Working Range

The large glass optics of this multi-functional tool allow for perfect levelling and alignment over long distances. The working range is up to 35 meters depending on the lighting conditions, and can easily be extended up to 80 meters using the laser receiverย Leica RGR 200.

Easy Positioning

The Leica Lino L2P5G is quickly and easily attached to a variety of surfaces. Its magnetic adapter fits into U-profiles and with the addition of theย UAL 130 adapterย the device is easily attached to edges, metal poles, and bars.

Self-Leveling

The cross-line and point lasers of the Leica Lino L2P5G are always level once positioned. The tilt is automatically adjusted when within a ยฑ 4ยฐ limit. Outside this limit an alert indicates that the positioning needs to be adjusted.

Construction Site Proof

The Leica Lino L2P5G has a rugged design and is dust and spray water protected to IP 54 standards. This makes it a great tool to speed up the workflow and increase productivity on todayโ€™s construction sites.

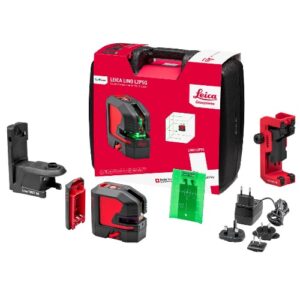

What’s Included:

โ€ข Leica Lino L2P5G Point-Line Laser

โ€ข Leica TWIST 360 Adapter

โ€ข Leica UAL 130 Universal Adapter

โ€ข Li-Ion Battery Pack

โ€ข Charger

โ€ข Alkaline Battery Tray

โ€ข Target Plate

โ€ข Hard Case

Safety Instructions

โ€ข Quick Start with QR Code Linking to Online Manual

โ€ข 3 year Warranty

Additional information

Weight 25 lbs
Dimensions 24 × 18 × 18 in

Specifications

  • Range: up to 35 m depending on lighting conditions
  • Range with laser Receiver: up to 80 m depending on lighting conditions
  • Levelling Accuracy: ยฑ 0.2 mm / m
  • Self-Levelling Range: ยฑ 4 ยฐ
  • Self-Levelling Time: < 3 s
  • Number of Laser Dots: 4
  • Number of Laser Lines: 2
  • Beam Direction: vertical, horizontal, up, down, right, left
  • Dot Accuracy: ยฑ 0.2 mm / m
  • Laser Line Width at 5m: < 2 mm
  • Laser Type: 525 nm / class 2 (green)
  • Battery Type: Li-Ion rechargeable (or AA 3 x 1.5 V)
  • Operating Time: up to 28 h (Li-Ion) depending on laser mode
  • Temperature Range Storage: -25 to 70ยฐC (-13 to 158ยฐF)
  • Temperature Range Operation: -10 to 50ยฐC (14 to 122ยฐF)
  • Protection Class: IP 54
  • Dimensions: 110 x 60 x 100 mm
  • Weight with Batteries: 530 g
  • Tripod Thread LINO: 1/4″
  • Tripod Thread Adapter: 1/4″ + 5/8″

Download Data Sheet

Download Data Sheet
